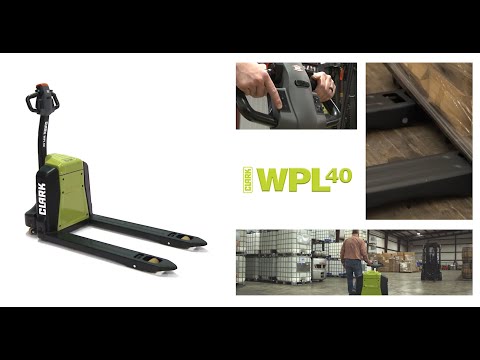

PALLET JACKS-PALLET STACKERS
48V Electric Lithium Ion Battery
PIN-WHEELING With the handle in the fully upright position, the WPL40 pin-wheels in and out of tight spaces using a smaller, tighter turn-radius and moves up to 4,000 lbs in close-quarters with ease.
48-VOLT LITHIUM-ION BATTERY POWER OUTPUT The Lithium-Ion 48-Volt battery provides the same power-output all the way through the charge cycle — giving the operator the same power during the first 10% of the charge as the last 10% as well as surpassing the truck charge power from similar lead-acid batteries.
GEAR TECHNOLOGY The state-of-the-art optimized gear technology supplies advantages such as low noise level, high efficiency, and high performance.
MAINTENACE The fully adjustable pull rods and torsion bar extends the WPL40 operating life in delivery truck and dock use applications. The WPL40 goes further with easily accessible grease zerks for easier maintenance.
HYDRAULICS The permanent magnet DC pump motor and chrome-plated lifting cylinder provides for smooth and efficient lifting, as well as greater durability.
ERGONOMIC STEER/CONTROL HANDLE With travel, lift and lower functions all located in an ergonomic operator handle, operators can access all controls without having to lift a hand from the handle. Additionally, the WPL40 control-handle includes: A solid steel tubing control tiller arm and control handles meant to outlast cast aluminum or plastic designs. Angled control handle grips allowing easy operation with either hand. An emergency reversing switch, thumb control, and horn — all standard. The low-mounted tiller arm supports minimum steering effort for greater operator comfort. The gas-assisted spring gently returns the control tiller arm to a vertical position. Crawl speed switch enables the operator greater-ease-of-use in tight spaces
SERVICEABILITY The removable covers and the modular design of the WPL40’s components provide for easy maintenance with simple hand tools. And the two-piece drive wheel reduces the complexity of tire changes.
FORK DESIGN WITH TAPERED TIPS The WPL40’s fork construction and pallet entry slide system, which allows a lifting of the forks up-and-over the bottom board, provides easy pallet access. The forks, at 27” OAW x 46.0 OAL, can achieve a maximum elevation of over 7.5”. The shape of the load wheel housing or toe box, ensures pallet entry and exit can occur without the need for wearable rollers.
ELECTRICAL COMPONENTRY The water-resistant connectors and shrouded wiring harness supply power reliably to key components. The WPL40 system includes a key switch, emergency power disconnect, and onboard dock for Easy Exchange Battery.
BRAKES The electromagnetic brake, mounted on the motor armature shaft, multiplies the braking power through the transmission and provides good stopping power when the control tiller is raised to the full vertical position or lowered to full horizontal position beyond the operating range. Additionally, the armature-mounted brake design: Keeps the braking mechanism clear from dirt and debris. Automatically engages the parking brake when the truck stops and the handle is released. Features an anti-rollback and neutral braking system for improved safety in operation
